R5-20 harness 1059 fuse box twist fuse box 5 * 20

Reomax Ruimai fuse box, fuse holder, fuse base, automobile fuse holder, PCB board, safety regulations, harness, panel installation, fuse clip, waterproof, bakelite fuse holder, complete specifications, 3 * 10 5x20, 6x30, 10x38 8 * 4 square fuse holders, all of which refer to the seats used to install fuses. The categories of fuse holders can be divided into: panel mounted fuse holders PCB installation fuse holder, lead fuse holder, guide rail fuse holder and automobile fuse holder. Chinese name fuse holder foreign name fuse holder can be divided into panel mounted fuse holder, etc. fuse holder refers to the seat used to install fuse. Fuse holders have current resistance, voltage resistance, fire rating and other requirements. Fuse holder refers to the seat used to install fuse and fuse holder

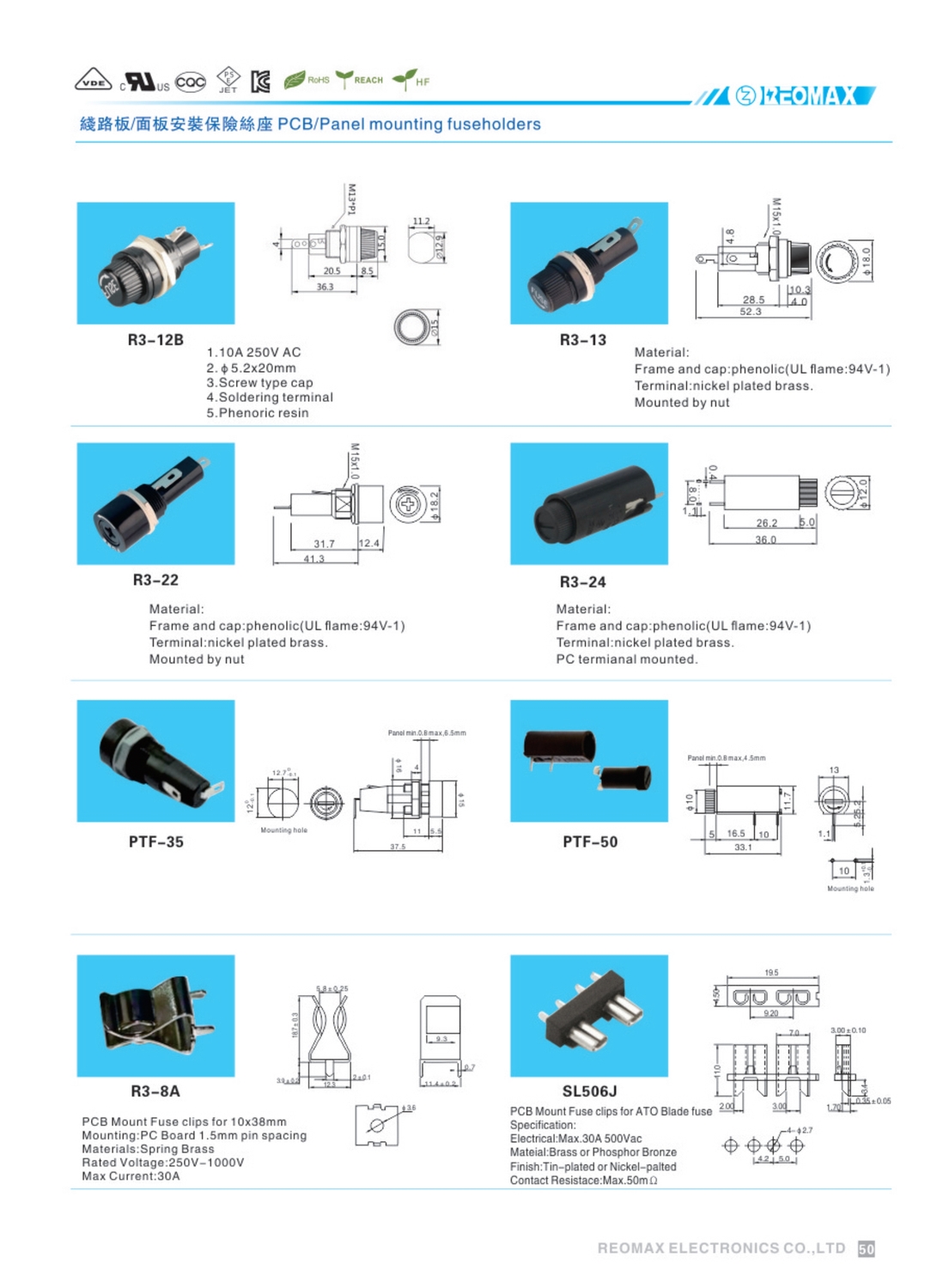

Fuse holders can be divided into: panel mounted fuse holders, PCB mounted fuse holders, lead-in fuse holders and automobile fuse holders; Panel mounted fuse holder (mostly used for electrical equipment, such as power amplifier, DVD, speaker, massage chair and other electrical equipment); Lead type fuse holder (mostly used for connection of small household appliances and industrial machinery harness); PCB fuse holder (mostly used on the control board of small household appliances) and fuse clip (mostly used on the control board of small household appliances). Automobile fuse holder can be divided into lead automobile fuse holder (on multi-purpose automobile and industrial machinery harness); Panel mounted automobile fuse holder (mostly used in automobile electrical appliances, such as automobile power amplifier, automobile refrigerator, automobile DVD, etc.) and automobile fuse clip. Fuse holders have current resistance, voltage resistance, fire rating and other requirements. Generally, they need to pass UL CSA VDE RoHS and other safety regulations and EU certification.

According to the classification of fuse installation, it can be divided into fuse holder and fuse holder

According to the fuse size, it can be divided into large fuse holder, medium fuse holder and small fuse holder

According to the material, it can be divided into plastic fuse holder and bakelite fuse holder

According to environmental protection, it can be divided into environmental protection fuse holder and non environmental protection fuse holder

According to the installation method: it can be divided into lead-in fuse box and circuit board fuse holder, and the instrument panel is equipped with fuse holder

Automobile waterproof fuse holder, common models are (applicable fuse tube size): 5 × 20mm fuse holder, 6 × 30mm fuse holder;

Automobile fuse holders include (suitable for plug-in models): small plug-in fuse holder, medium plug-in fuse holder and large plug-in fuse holder.

The above are commonly used. The selection of fuse base depends on its own suitability, mainly on the installation size, suitable fuse tube size, shape and performance.

The improved structure of the fuse base, in particular to a fuse base with a display of the fuse condition and without replacing its self resetting fuse. The utility model comprises a first conducting body with a plurality of screw holes respectively communicated with each other, and each screw hole is screwed into an butting screw; A plurality of second conducting bodies each having a screw hole and a jack communicated with each other, and each screw hole is screwed into a butting screw; A plurality of self resetting fuses which are electrically connected between the first conducting body and each second conducting body; A base with the first and second conducting bodies fixed on the top side; An upper cover covering the base; And a circuit board fixed on the upper cover and provided with a plurality of light-emitting components, which is electrically connected with the first conductive body and each second conductive body.
